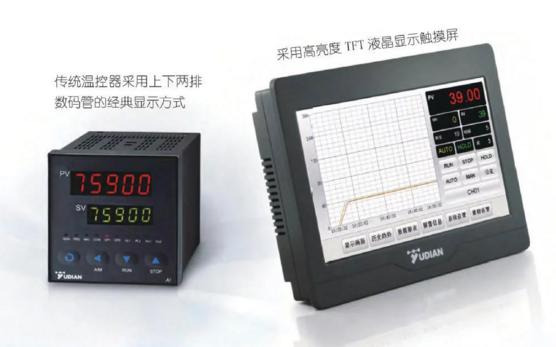

1. Large touch screen

  The use of 5", 7", 9"three sizes of high brightness TFT LCD touch screen, the display content is more rich and comprehensive.

2. Integrated design

  The design has low installation requirements and can be easily installed on the operation panel of various equipment.

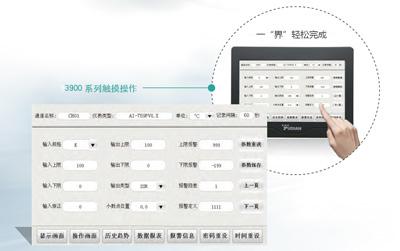

3. Chinese menu, easy to use

  New industrial touch screen operation, parameters are easily set in one interface, and the Settings menu is all in Chinese, so customers can use it as easily as using a mobile phone.

4. Reliable hardware design

  The design of the whole machine is low power consumption, providing up to 36 months of quality warranty: dual CPU processing mode, one ARM chip for processing graphical man-machine interface and data recording function; The independent single-chip microprocessor CPU is used for real-time control and sampling, meeting the strict requirements of the industrial field: passing the 4KV group pulse anti-interference test.

5. New AI logic PID algorithm

  The new AI artificial intelligence logic PID algorithm realizes no-overshoot and no-undershoot control of complex long-lag objects for precision temperature control in industry and scientific research.

6. Enrich the data recording function

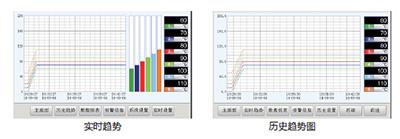

  AI-3500/3700/3900 with data recording function, can display real-time trend, light column and historical trend, and provide report form recording data and alarm recording function. With 150 megabytes of storage space, assuming a control loop is set to record data once a minute, the data can be stored for up to 12 years. The stored data can not only be played back with curves and values on the instrument LCD screen, but also be exported on the computer through the U disk for further analysis and processing.

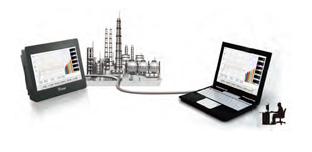

7. The Ethernet port provides remote monitoring

  The instrument has a built-in WEB server and Ethernet interface, through which the AI-3500/37700/3900 can be remotely monitored and operated using the www browser.

8. Flexible configuration for single-machine applications.

  The AI-3500/37700/3900 itself has five module sockets that can be combined into a multi-channel measurement alarm instrument, a multi-loop regulation instrument or a high-performance multi-function PID regulator.

9. Module expansion and screen configuration can be performed according to customer requirements

  Ai-3500/37700/3900 comes with module combination can not meet customer needs, but also through the expansion port to connect various types of Yu electric thermostat module, switch quantity 1/0 module or PLC, can be integrated configuration of up to dozens of measurement and control circuits.

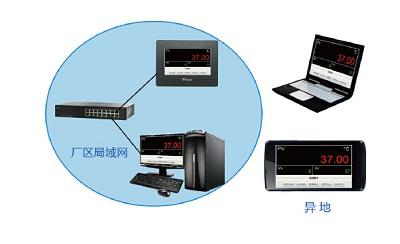

10. Cloud/mobile APP viewing function

  With P2P cloud function (no public IP address, can penetrate the Intranet monitoring), can be remote through smart phones, tablets and other mobile devices for monitoring and operation.

Configuration Monitoring Software System Features:

  1. Concentrated the advantages of traditional instrument and computer control, high reliability, easy to master. The fault between each instrument and the fault between the upper computer are isolated from each other, and will not affect each other and spread. The computer failure only affects the functions of centralized management and data recording, and the instrument can still maintain normal control and operation.

  2.The display content on the computer screen is rich, and the measured value, given value, output value and instrument label can be displayed at the same time. The given values and common parameters can be modified by computer.

  3.High-performance recording function. Because it is based on personal computers, while the cost is lower than various paper or paperless recorders, its performance (recording density, recordable time and easy to find) is much higher than various paper or paperless recorders.

  4.With extremely high communication reliability, even when there are two instruments on the network with the same address, other instruments can still communicate normally.

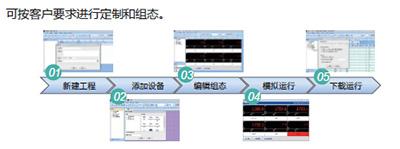

  5.With detailed configuration function, the screen is more humane.
