Production Description:

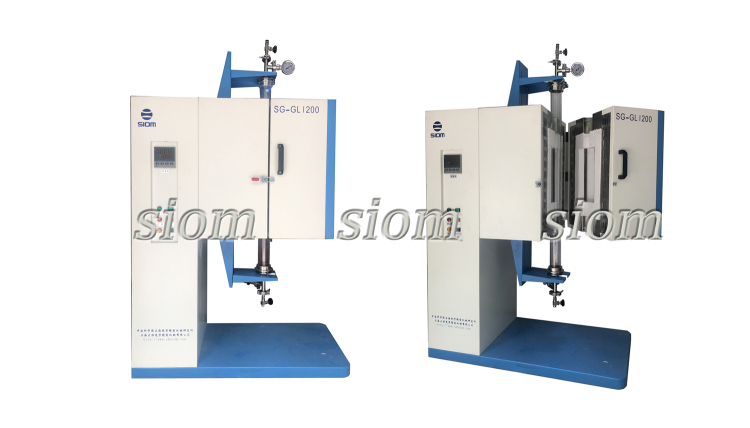

  The equipment can be opened on the side of the furnace. The two ends of the furnace tube are sealed with stainless steel flanges. The air nozzle, valve and pressure gauge are respectively installed on the stainless steel flanges.The different vacuum systems can achieve different vacuum effects. The furnace is a vertical furnace, the furnace tube is fixed on the support frame, and the furnace tube and flange are respectively fixed by supports, which is convenient to use and simple to operate. With the advantages of temperature field equilibrium, low surface temperature, fast rising and falling temperature rate, energy saving, etc.

Main Uses And Applicant Scope:

  It is the ideal equipment for high temperature sintering, research and development, low temperature treatment and small batch production of various materials in colleges and universities, scientific research institutes, enterprises and technical research and development centers. It can provide more detail for sample experiments.The atmosphere control control. It can be used in protective gas, weakly reducing gas and under positive pressure. It has the characteristics of fast sintering speed, high use efficiency and wide application range.
