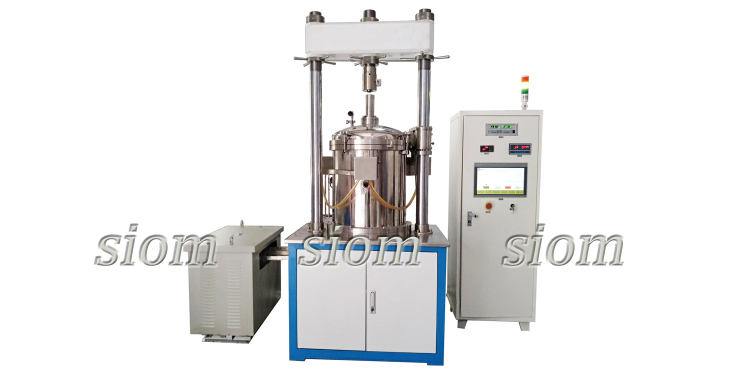

Vacuum Hot Press Furnace
Equipment Profile:

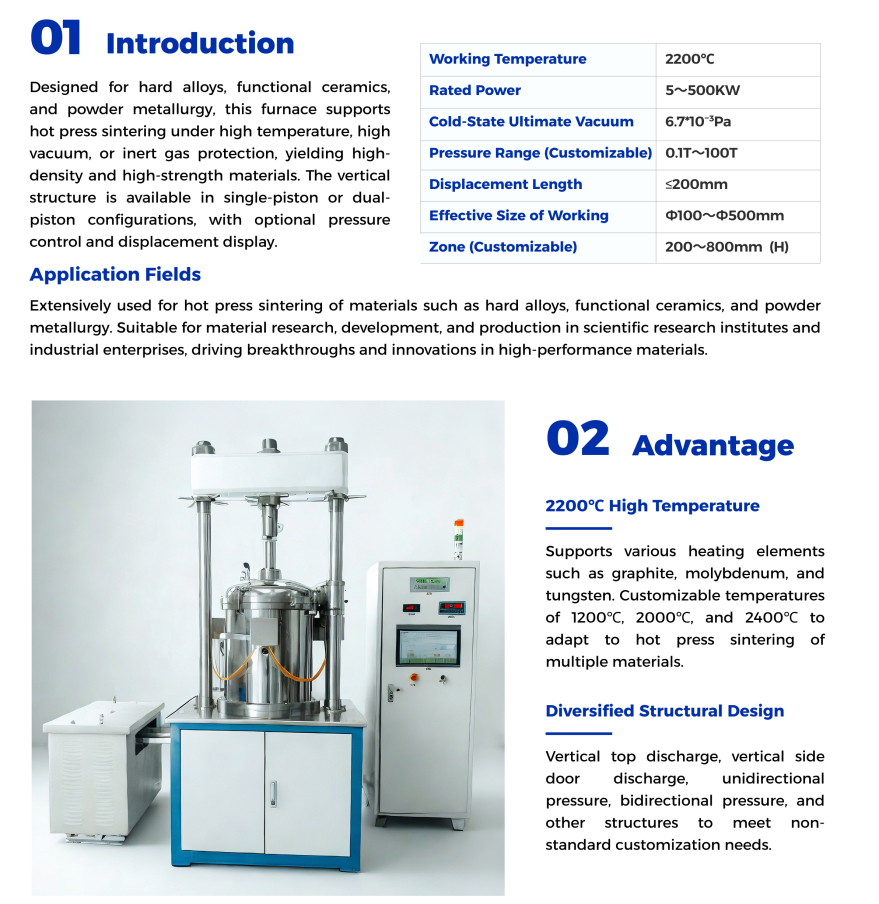

SG-RYL series vacuum hot-pressing furnaces are mainly used for Hot-pressing Sintering of cemented carbide, functional ceramics, powder metallurgy, etc. under high temperature and high vacuum conditions, or hot-pressing forming and sintering under inert gas protection.
Main features of the equipment:
1. Furnace body adopts double-layer SUS304 structure, with water cooling in the middle, which can effectively reduce the surface temperature of the furnace body, reduce high temperature damage, and reduce the impact on operators and environmental temperature.
2. Frame-type double-column supporting structure, using profiles welding, overall processing, to ensure the reliability of equipment;
3. The range of temperature is wide. There are many kinds of heating elements, such as graphite, molybdenum, tungsten, tantalum, etc. In a suitable protective atmosphere, the highest temperature can reach 2200 C, which can be adapted to the hot pressing sintering of different materials.
4. Vacuum system (mechanical pump or diffusion pump unit) can be selected according to technological requirements.
5. With inlet and outlet gas nozzles and overpressure protection devices, hot pressing sintering can be carried out either in vacuum environment or in inert or reductive atmosphere; other heating modes can be used in air environment (temperature < 1600 C, heating elements can be selected according to temperature requirements: resistance wire, silicon carbon rod or silicon-molybdenum rod) for hot pressing test.
6. Humanized configuration can be operated manually or intelligently by one key.
7. Diversified structure, vertical feeding and discharging, vertical side door discharging, one-way pressure, two-way pressure and so on, arbitrary choice;
Technical parameters:
Model
SG-RYL2200A
SG-RYL2200B
SG-RYL2200C
Working power supply
Three phase 380V
Maximum temperature
2200 C
Rated power
20KW
25KW
40KW
Cold limit vacuum
6.7X10-3Pa
pressure
20T
10T
20T
Melting quantity
140 x 160
160 x 160
160 x 200
Displacement accuracy
+ 0.05mm
Quality Advantages of Experimental Furnace of Shanghai Institute of Optical Precision Machinery, Chinese Academy of Sciences:
SG-RYL series vacuum hot-pressing furnaces are mainly used for Hot-pressing Sintering of cemented carbide, functional ceramics, powder metallurgy, etc. under high temperature and high vacuum conditions, or hot-pressing forming and sintering under inert gas protection.
Main features of the equipment:
1. Furnace body adopts double-layer SUS304 structure, with water cooling in the middle, which can effectively reduce the surface temperature of the furnace body, reduce high temperature damage, and reduce the impact on operators and environmental temperature.
2. Frame-type double-column supporting structure, using profiles welding, overall processing, to ensure the reliability of equipment;
3. The range of temperature is wide. There are many kinds of heating elements, such as graphite, molybdenum, tungsten, tantalum, etc. In a suitable protective atmosphere, the highest temperature can reach 2200 C, which can be adapted to the hot pressing sintering of different materials.
4. Vacuum system (mechanical pump or diffusion pump unit) can be selected according to technological requirements.
5. With inlet and outlet gas nozzles and overpressure protection devices, hot pressing sintering can be carried out either in vacuum environment or in inert or reductive atmosphere; other heating modes can be used in air environment (temperature < 1600 C, heating elements can be selected according to temperature requirements: resistance wire, silicon carbon rod or silicon-molybdenum rod) for hot pressing test.
6. Humanized configuration can be operated manually or intelligently by one key.
7. Diversified structure, vertical feeding and discharging, vertical side door discharging, one-way pressure, two-way pressure and so on, arbitrary choice;
Technical parameters:
Model
SG-RYL2200A
SG-RYL2200B
SG-RYL2200C
Working power supply
Three phase 380V
Maximum temperature
2200 C
Rated power
20KW
25KW
40KW
Cold limit vacuum
6.7X10-3Pa
pressure
20T
10T
20T
Melting quantity
140 x 160
160 x 160
160 x 200
Displacement accuracy
+ 0.05mm
Quality Advantages of Experimental Furnace of Shanghai Institute of Optical Precision Machinery, Chinese Academy of Sciences:
Senior engineer, master of engineering and doctor of Shanghai Institute of Optics and Precision Machinery, Chinese Academy of Sciences can select the experimental furnace for your company and research institute, and senior designers can work together to design the high temperature furnace.
