Technical Specifications:

1. Furnace Body:

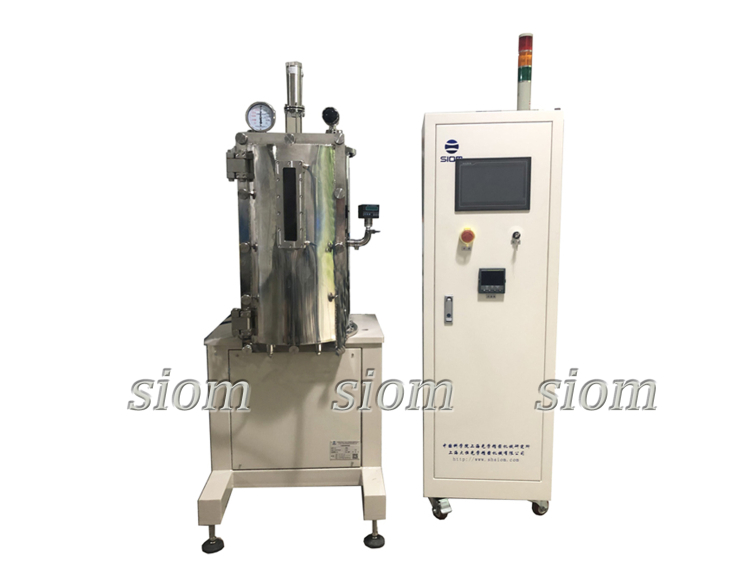

The vacuum furnace chamber has dimensions of Φ350×600mm, with a double-layer water-cooled furnace wall made of 304 stainless steel.The furnace door is side-opening, equipped with a water-cooled quartz observation window.

2. Medium Frequency Power Supply:

The product should utilize silicon components and IGBT modules to convert the industrial frequency three-phase AC power supply into a single-phase medium frequency power supply. The induction power controller uses uncontrolled rectification technology, featuring a high power factor (>0.95), low grid pollution, and both constant current and constant power control modes, ensuring the controller always operates in effective power output mode. It is suitable for frequent startups or long-term operation. The human-machine control interface should have communication functionality, with an RS-485 connection, allowing remote reading and writing of controller parameters and operational status.

(1) Medium Frequency Power: 30kW

(2) Frequency: 2.5-8KHz (optional)

(3) Power Factor: >0.9

(4) Power Conversion Efficiency: >70-95% (the power and conversion efficiency of the medium frequency power supply vary with temperature changes during operation)

(5) Power Stability Accuracy: <0.2%

3. Vacuum System:

(1) Equipped with a mechanical pump 2X-8.

(2) Vacuum Degree: (cold state, no load) ≤10Pa (digital vacuum gauge)

(3) Inlet Flow Rate: 1~10L/min (optional with mass flow meter)

(4) Micro-positive Pressure Constant Pressure Automatic Control: ≤0~0.04Mpa

4. Heating System:

Requires medium frequency induction heating, with a working temperature range of 100℃~2000℃ and a working power supply of AC380V/50HZ. The temperature measurement method is B-type thermocouple:

(1) Power control when ≤1200℃

(2) Temperature control when ≥1200℃

5. Temperature Control Method:

Uses a liquid crystal touchscreen display for quicker settings and a more intuitive display of equipment operational status. The setting data and operations are presented in a graphic and text interface for easy operation. For data storage and output, data can be copied to a computer via a USB interface for long-term preservation, with the ability to store multiple programs. It features a 50-segment programmable temperature control curve, eliminating the need for constant monitoring (fully automatic heating, temperature maintenance, and cooling).

Experimental Furnace from Shanghai Institute of Optics and Fine Mechanics, Chinese Academy of Sciences - Quality Advantages:

1. Furnace Shell And Chamber

① Double-layer high-quality carbon steel plate with surface rust-resistant and high-temperature resistant paint treatment.

② Beautiful and energy-efficient high-temperature furnace chamber made of poly-crystalline alumina fibers.

2. Electrical Components And Temperature Control

① All electronic components are from Delixi, and the thyristors are originally manufactured in Japan or Germany.

② For safe and efficient use, an imported all-copper isolated transformer is adopted.

③ Temperature control and detection are fully implemented using:Single platinum-rhodium (Type S) for temperatures ≤1500℃; Double platinum-rhodium (Type B) for temperatures ≤1800℃.

3. Research Team

Senior engineers, masters, and doctors from the Shanghai Institute of Optics and Fine Mechanics, Chinese Academy of Sciences can assist your company or research institute in selecting the appropriate experimental furnace and collaborate with senior designers to develop a high-temperature furnace design plan.
