Product Description:

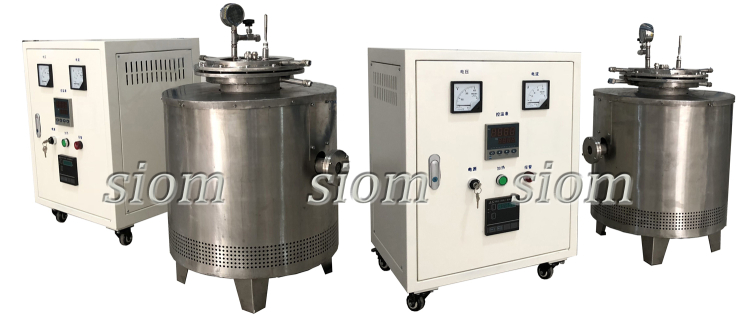

The shaft furnace with observation window adopts top open door. A quartz observation window of 30 is opened on both sides of the furnace. A test hole of 6 mm is opened on the top. The top cover is water-filled and sealed dynamically. With high quality resistance wire as heating element, double shell structure and intelligent temperature control system are adopted. The furnace uses alumina polycrystalline fiber material, which has good thermal insulation and energy saving.
Main uses and scope of application:
Special equipment for sintering, melting, analysis and production of ceramics, metallurgy, electronics, glass, chemical industry, machinery, refractories, new materials development, special materials, building materials, metals, non-metallic materials tempering, annealing and other heat treatment, as well as quenching, solid melting and aging treatment of aluminium alloys.
Main functions and characteristics:
1. Alumina polycrystalline fiber material is used in the furnace, which has good thermal insulation, durability, high tensile strength, no impurities, high purity and obvious energy saving effect.
2. High quality alloy wire OCr27Al7Mo2 is used as heating element.
3. The shell can be designed with Q235/304 stainless steel and the inner liner can be made with 310S stainless steel.
4. Turn on power-off and leakage protection, and alarm over-temperature to ensure the safety of the equipment.
5. Our software devices are connected with computers through 485 or USB interface, which can realize remote control, real-time tracking, history recording and report output of single or multiple electric furnaces, and can install paperless recording device to realize data storage and output.
6. The vacuum system, inflation system and temperature control system can be programmed by touch screen operation. The operation is simple, convenient and accurate.
Technical parameters:
Product model
SG-JSL1000
Furnace effective size
Phi 150*200
Furnace material
High purity alumina fibers
Outline size
Formulate on the basis of practice
Working power supply
AC380V 50/60HZ
Rated power
About 6KW
Common temperature
Less than 900 degrees centigrade
Design temperature
1000 C
Recommended heating rate
1~15 C /min
temperature control
Intelligent PID control, micro-computer control, 30 programmable temperature control curve, without guard (automatic rise, fall, heat preservation)
vacuum degree
300pa (Digital Display Vacuum Meter)
control accuracy
+ 1 c
Weight
According to actual manufacture
Heating element
Resistance wire
Thermometric element
K-type thermocouple
Note: Wellbore furnaces with different temperature ranges, furnace sizes, vacuum or non-vacuum can be customized. Please contact the sales staff when ordering.
Experimental Furnace of Shanghai Institute of Optical Precision Machinery, Chinese Academy of Sciences - Quality Advantage:
I. Furnace Shell and Furnace
1. Double-layer high-quality carbon steel plate, surface rust-proof and high-temperature paint treatment;
2. High temperature furnace with alumina polycrystalline fibers is beautiful and energy-saving.
II. Electrical appliances and temperature control
1. All the electronic components of Delicious brand and SCR are originally made in Japan or Germany.
2. To ensure safe and efficient use, imported copper isolation transformer is adopted.
3. Temperature Control and Detection
Rhodium monoplatinum (S type) is less than 1500 C.
Bi-platinum rhodium (B type) is less than 1800 C.
Senior engineer, master of engineering and doctor of Shanghai Institute of Optics and Precision Machinery, Chinese Academy of Sciences can select the experimental furnace for your company and research institute, and senior designers can work together to design the high temperature furnace.
