Product Description:
SG-DZL1200 customized high-temperature well furnace can be placed horizontally or vertically by hand wheel; the furnace uses alumina polycrystalline fiber material with good thermal insulation performance, uses resistance wire/silicon carbon rod as heating element, adopts intelligent program temperature control system, phase-shifting trigger, silicon controlled control, and can work in horizontal or vertical positions, so that the sample is fully heated and full. It meets the needs of different experiments and greatly enhances the scope of its application.
Main uses and scope of application:
It can be widely used in ceramics, metallurgy, electronics, glass, chemical industry, machinery, refractories, special materials, building materials, universities, scientific research institutes, industrial and mining enterprises to do powder roasting, ceramic sintering, high temperature experiments, material processing, quality colleges, scientific research institutes, industrial and mining enterprises to do high temperature atmosphere sintering, atmosphere reduction, CVD experiments, vacuum annealing, etc.
Main functions and characteristics:
1. Alumina polycrystalline fiber material is used in the furnace, which has good thermal insulation, durability, high tensile strength, no impurities, high purity and obvious energy saving effect.
2. The heating element adopts silicon carbon rod.
3. The shell can be designed with Q235/304 stainless steel and the inner liner can be made with 310S stainless steel.
4. Turn on power-off and leakage protection, and alarm over-temperature to ensure the safety of the equipment.
5. Our software device is connected with computer through 485 or USB interface, which can realize the functions of remote control, real-time tracking, history recording and output report forms of single or multiple electric furnaces. Paperless recording device can be installed to realize data storage and output.
6. The vacuum system, inflation system and temperature control system can be programmed by touch screen operation. The operation is simple, convenient and accurate.

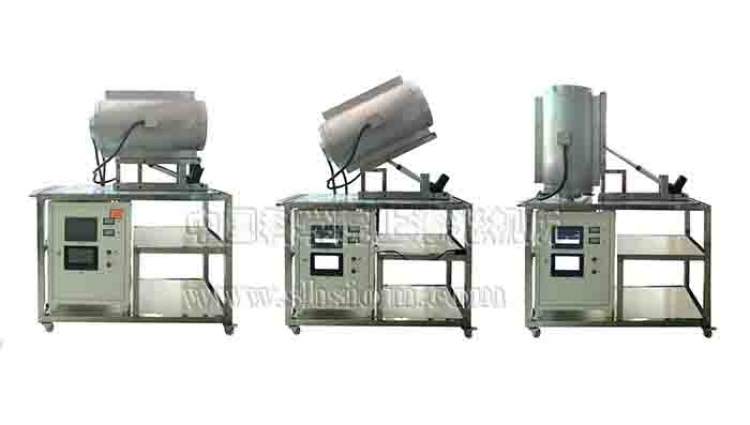

7. The furnace body can work horizontally, vertically or at any angle, which greatly enhances the scope of application.

Technical parameters:

Product model
SG-DZL1200
Furnace size (mm)
Phi 40*500 (customizable)
Working power supply
220V/380V 50/60HZ
Heating element
Resistor Wire/Silicon Carbon Bar
Rated temperature
1200 C
temperature control
Intelligent PID control, micro-computer control, 30 programmable temperature control curve, without guard (automatic rise, fall, heat preservation)
heating rate
1~15 C /min
control accuracy
+ 1 c
Thermometric element
S-type Thermocouple of Thermoplatinum and Rhodium
Standard accessories
One pair of high temperature gloves, one crucible pliers, one set of maintenance tools, packing list, delivery receipt, operation and maintenance instructions, after-sales service commitment.
Optional Accessories
High, medium and low vacuum systems, paperless recorders, corundum crucibles, quartz crucibles, etc.
Note: Wellbore furnaces with different temperature ranges, furnace sizes, vacuum or non-vacuum can be customized. Please contact the sales staff when ordering.
Experimental Furnace of Shanghai Institute of Optical Precision Machinery, Chinese Academy of Sciences - Quality Advantage:
I. Furnace Shell and Furnace
1. Double-layer high-quality carbon steel plate, surface rust-proof and high-temperature paint treatment;
2. High temperature furnace with alumina polycrystalline fibers is beautiful and energy-saving.
II. Electrical appliances and temperature control
1. All the electronic components of Delicious brand and SCR are originally made in Japan or Germany.
2. To ensure safe and efficient use, imported copper isolation transformer is adopted.
3. Temperature Control and Detection
Rhodium monoplatinum (S type) is less than 1500 C.
Bi-platinum rhodium (B type) is less than 1800 C.
Senior engineer, master of engineering and doctor of Shanghai Institute of Optics and Precision Machinery, Chinese Academy of Sciences can select the experimental furnace for your company and research institute, and senior designers can work together to design the high temperature furnace.
