Technical parameters:

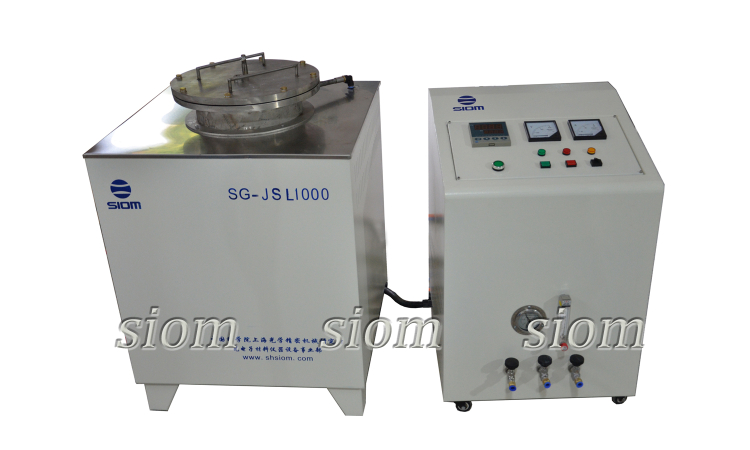

Product model
SG-JSL1000
Furnace size (customizable)
250*300
Furnace material
High purity alumina fibers
Working power supply
AC220/380V
Rated power
About 12KW
Common temperature
Less than 950 degrees centigrade
Maximum temperature
1000 C
Recommended heating rate
1~15 C /min
temperature control
Intelligent PID control, micro-computer control, 30 programmable temperature control curve, without guard (automatic rise, fall, heat preservation)
control accuracy
+ 1 c
Weight
According to actual manufacture
Heating element
High quality resistance wire
Thermometric element
S-type thermocouple

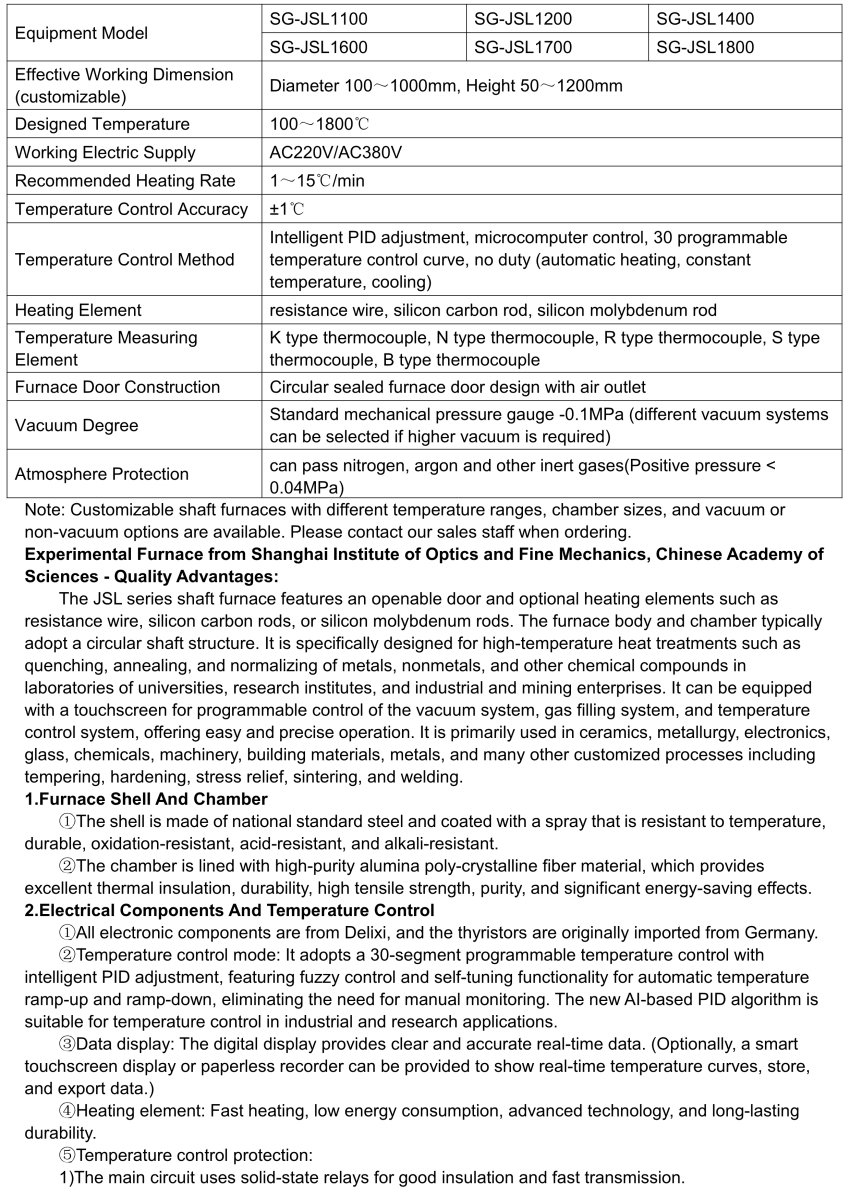

Note: Wellbore furnaces with different temperature ranges, furnace sizes, vacuum or non-vacuum can be customized. Please contact the sales staff when ordering.
Experimental Furnace of Shanghai Institute of Optical Precision Machinery, Chinese Academy of Sciences - Quality Advantage:
I. Furnace Shell and Furnace
1. Double-layer high-quality carbon steel plate, surface rust-proof and high-temperature paint treatment;
2. High temperature furnace with alumina polycrystalline fibers is beautiful and energy-saving.

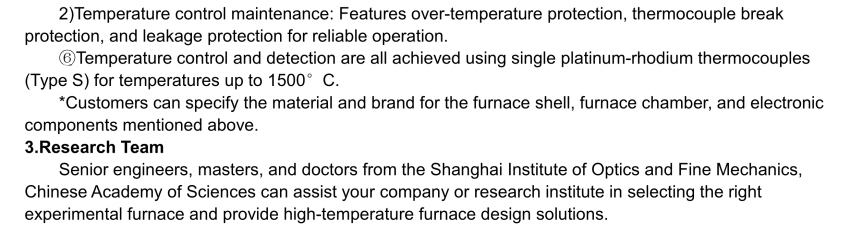

II. Electrical appliances and temperature control
1. All the electronic components of Delicious brand and SCR are originally made in Japan or Germany.
2. To ensure safe and efficient use, imported copper isolation transformer is adopted.
3. Temperature Control and Detection
Rhodium monoplatinum (S type) is less than 1500 C.
Bi-platinum rhodium (B type) is less than 1800 C.
Senior engineer, master of engineering and doctor of Shanghai Institute of Optics and Precision Machinery, Chinese Academy of Sciences can select the experimental furnace for your company and research institute, and senior designers can work together to design the high temperature furnace.
