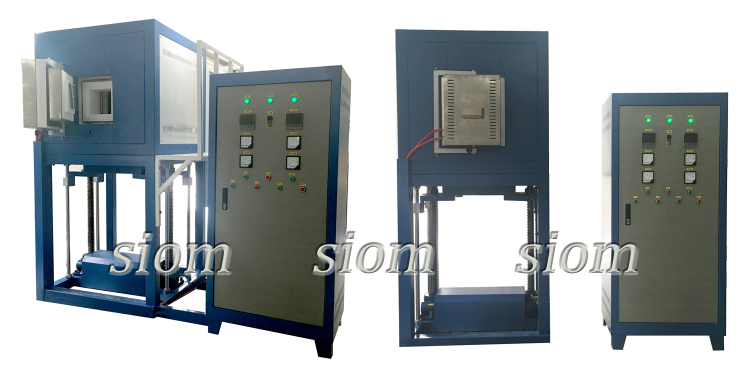

Product Description:
The high-temperature lifting mixing furnace has advanced and reasonable structure, beautiful appearance, and all the furnace is constructed with high purity alumina fiber material by unique numerical control technology. It has strong thermal shock resistance, good corrosion resistance, no collapse, no crystallization, no slag falling, no pollution and long service life. The shell is made of high-quality cold-rolled steel plate, processed by advanced numerical control machine tools, using high-quality silicon-molybdenum bars as heating elements, and air cooling system between the two-layer shell, which can quickly cool down. The furnace has the advantages of balanced temperature field, low surface temperature of the furnace body, fast temperature rise and fall rate, energy saving, etc. The control system adopts artificial intelligence adjustment technology of micro-computer, which has the functions of PID regulation, automatic control, self-tuning, multi-stage programming, and can compile various heating, heat preservation and cooling programs, with high precision of temperature control; the integrated module is controlled by silicon and triggered by phase shift. The degree of automation is relatively high, and the indicators have reached the advanced level.
Main uses and scope of application:
This equipment is widely used in universities, scientific research institutes, industrial and mining enterprises for powder, military industry, electronics, metallurgy, medicine, ceramics, glass, machinery, new material development, special materials, refractories, building materials, chemical industry, metal sintering and metal heat treatment experiments and production of ideal equipment.
Main functions and characteristics:
1. High-quality silicon-molybdenum rods are used for heating elements, and high-purity alumina fiber material is used for furnace. It has good thermal insulation, durability, high tensile strength, no impurities, high purity, and better energy-saving effect than domestic fiber material.
2. Our software equipment is connected with computer through 485 or USB interface, which can realize remote control, real-time tracking, history recording and report output of single or multiple electric furnaces, and can install paperless recording device to realize data storage and output.
3. Overtemperature alarm and power failure, leakage protection, safe and reliable operation;
4. Furnace body: through electrostatic spraying, corrosion resistance, acid and alkali resistance, the furnace body and hearth are separated by air-cooled furnace wall temperature close to room temperature.
5. Optional remote control touch screen operation mode, complete functions: the temperature control system is programmed, easy to operate, accurate; the world's leading AI artificial intelligence adjustment algorithm, a set of measurement, display, control, alarm, recording and other functions in one ultra-thin intelligent touch screen, can achieve accurate measurement and control of temperature, pressure, flow and other parameters. It has P2P cloud-end work. It can monitor and operate remotely through mobile devices such as smartphones, tablets and so on.
6. Wide range of temperature control, intelligent PID regulation, micro-computer control, 30-section programmable temperature control curve, without duty (automatic rise, fall, heat preservation).

Main technical parameters:

Product Model SG-SJL1800
Effective Furnace Size 250*300
Lifting load: 100KG
Furnace Material High Purity Alumina Fiber
Shape size is determined according to the actual situation.
Working power supply AC380V 50/60HZ
Rated power about 14KW
Common Temperature < 1700 Temperature
Design temperature 1800 C
Recommended heating rate 1-15 C/min
Intelligent PID control, micro-computer control, 30-section programmable temperature control curve, without guard (automatic rise, fall, heat preservation)
Stirring Function: Stirring in Furnace
Stirring speed regulation function: motor with digital frequency converter speed regulation, stirring speed can be arbitrarily adjusted (5-50/min)
Furnace door structure, national standard screw lifting system, automatic screw lifting system, stable and non-flutter
Temperature Control Accuracy (+1 C)
Weight according to actual manufacture
Heating Element Silicon Molybdenum Bar
Temperature Measuring Element B Type Double Platinum Rhodium Thermocouple
Note:
1: Furnace size and temperature can be manufactured according to customer requirements.
2: Lifting system: screw lifting, hydraulic lifting (electric, manual) optional.
3: Material table system: single material table and multi-material table (electric, manual) are optional.
4: Electronic control system: computer control, touch screen control and micro-computer control are optional.
Quality Advantage of Experimental Furnace in Shanghai Institute of Optical Precision Machinery, Chinese Academy of Sciences
I. Furnace Shell and Furnace
1. Double-layer high-quality carbon steel plate, surface rust-proof and high-temperature paint treatment;
2. High temperature furnace with alumina polycrystalline fibers is beautiful and energy-saving.
II. Electrical appliances and temperature control
1. All the electronic components of Delicious brand and SCR are originally made in Japan or Germany.
2. To ensure safe and efficient use, imported copper isolation transformer is adopted.
3. Temperature Control and Detection
Rhodium monoplatinum (S type) is less than 1500 C.
Bi-platinum rhodium (B type) is less than 1800 C.
Senior engineer, master of engineering and doctor of Shanghai Institute of Optics and Precision Machinery, Chinese Academy of Sciences can select the experimental furnace for your company and research institute, and senior designers can work together to design the high temperature furnace.
