SJL Elevator Type Furnace

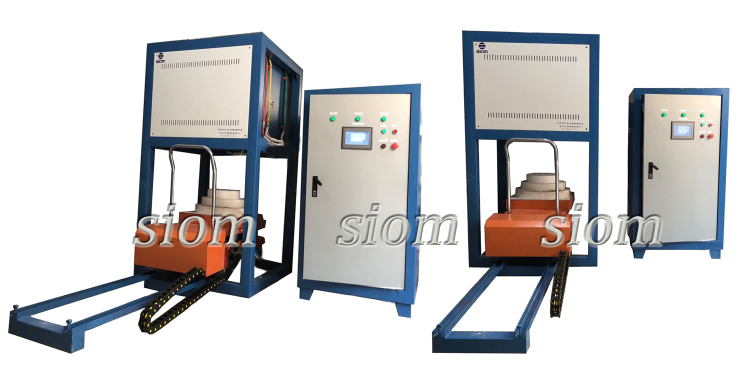

Fully automatic melting and casting furnace
Fully automatic melting and casting furnace
Overview of equipment:
1, use
SG-RLL Fully Automatic Melting and Casting Furnace is an ideal equipment for melting and casting special glass, ceramics and metal materials in universities, scientific research institutes and industrial and mining enterprises, and can mix the melt automatically. The effective working dimension (furnace dimension) is set as: _150-950 *200-1000mm (diameter *high), 0.5-200 kg melting and casting in one time, and the temperature is 100-1700 C.

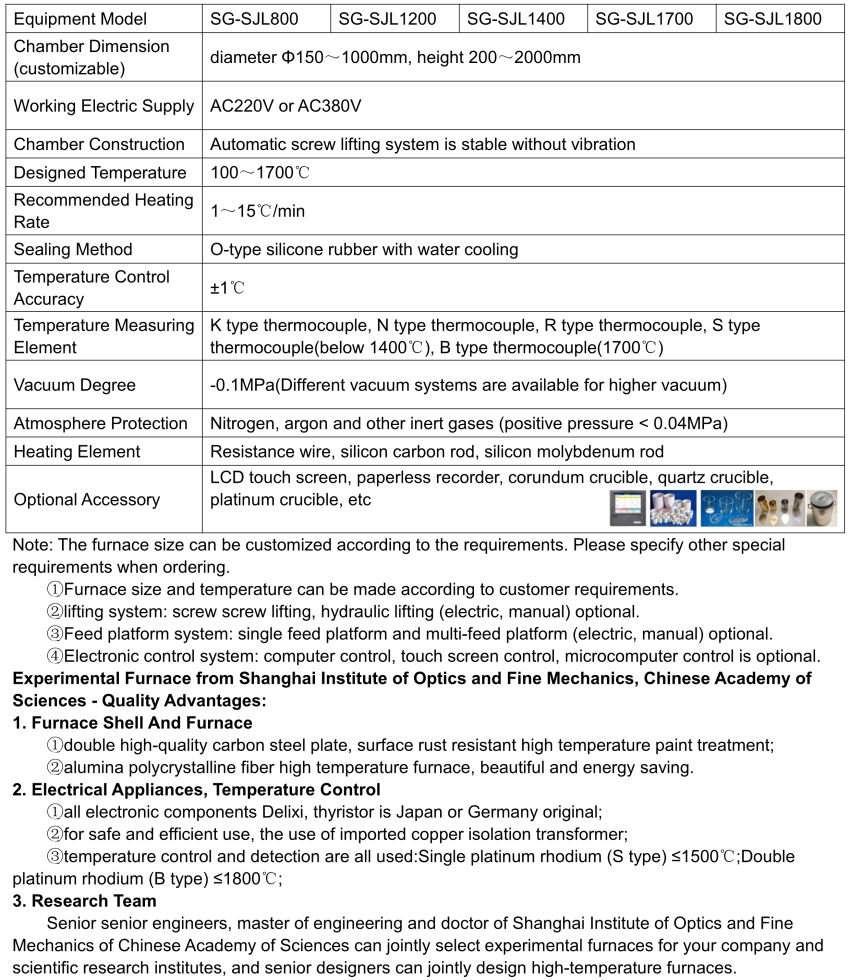

2. Technical parameters:
(1) Design power: 8-50 kw
(2) Shape size: 600/600/1200
(3) Design temperature: 100-1800 C/long-term working temperature: 1700 C
(4) rated voltage: 380V (5) phase: 3P
(6) Frequency: 50Hz
(7) Number of heating sections: according to volume
(8) Temperature Controller adopts 518P 30 curve of Xiamen Yudian
(9) Heating time of empty furnace: <1.5h
(10) Air loss: <8%
(11) Temperature Control Accuracy: +1 C
(12) Temperature control mode: integrated circuit, high power module control, double circuit protection: deviation protection, over-temperature protection, leakage protection, couple breaking protection, over-voltage protection, over-current protection, etc., the long-term operation of electric furnace is stable and reliable.
(13) Temperature measurement (temperature control) points: 1
(14) Type of thermocouple: S/B
(15) Material table loading: 300Kg
(16) Furnace Wall Temperature: <38 Temperature
(17) Heating Material: High Quality Silicon Carbon Bar/Silicon Molybdenum Bar
(18) Observation window: 304 stainless steel flange fixed quartz plate as observation window
(19) Stirring system: digital frequency converter is used to adjust the speed, and electric screw lifting system is used to lift up and down smoothly and without flutter.
(20) Lifting mode: electro-hydraulic lifting system
(21) Up and down rate: down time about 35 seconds, back time about 20 seconds, dumping time about 20 seconds
(22) Material table structure: the crucible table can be tilted 100 degrees by using electro-hydraulic system (full automatic)
(23) Advantages of energy saving: double-layer refractory insulation, all furnace using composite alumina fiber as insulation layer energy saving effect is 30% of the old furnace.

(24) Furnace structure: All of them are assembled by interlocking composite alumina refractories. The structure is reasonable and stable, high temperature resistance, rapid cold and heat resistance, no cracks, no crystallization, no slagging, no pollution and so on.

Quality Advantage of Experimental Furnace in Shanghai Institute of Optical Precision Machinery, Chinese Academy of Sciences
I. Furnace Shell and Furnace
1. Double-layer high-quality carbon steel plate, surface rust-proof and high-temperature paint treatment;
2. High temperature furnace with alumina polycrystalline fibers is beautiful and energy-saving.
II. Electrical appliances and temperature control
1. All the electronic components of Delicious brand and SCR are originally made in Japan or Germany.
2. To ensure safe and efficient use, imported copper isolation transformer is adopted.
3. Temperature Control and Detection
Rhodium monoplatinum (S type) is less than 1500 C.
Bi-platinum rhodium (B type) is less than 1800 C.
Senior engineer, master of engineering and doctor of Shanghai Institute of Optics and Precision Machinery, Chinese Academy of Sciences can select the experimental furnace for your company and research institute, and senior designers can work together to design the high temperature furnace.
