Product introduction:

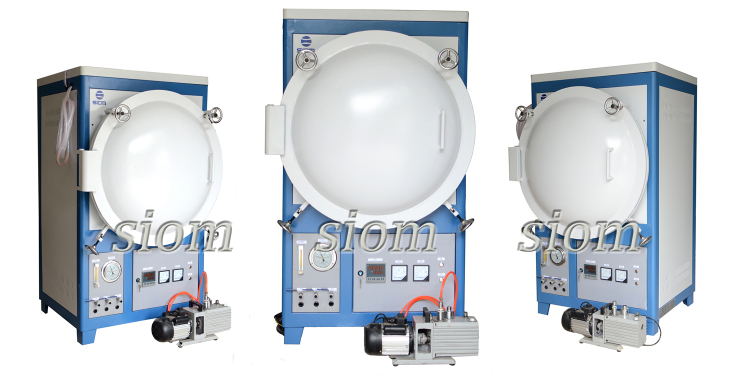

SG-SJ 1700 box-type vacuum atmosphere furnace uses high-quality silicon-molybdenum rod as heating element, adopts double shell structure and intelligent temperature control system, phase-shifting trigger and silicon controlled control; inner liner adopts temperature-resistant and pressure-resistant alloy material; furnace door is equipped with circulating water cooling to ensure reliable sealing between furnace door and furnace gall.
Main uses and scope of application:
It is applied to vacuum treatment of electronic components, new materials and powder materials.
Main functions and characteristics:
1. The inner liner is made of temperature-resistant and pressure-resistant alloy material, which can vacuum up to - 0.1 MPa, and can lead to a variety of protective atmosphere.
2. The furnace uses imported alumina polycrystalline fiber material, which has good thermal insulation, durability, high tensile strength, no impurities, high purity, better energy-saving effect than domestic fiber materials, and high-quality silicon-molybdenum rods are used as heating elements.
3. Through our software and computer interconnection, we can realize the functions of remote control, real-time tracking, history recording and output report forms of single or multiple electric furnaces, and install paperless recording device to realize data storage and output.
4. Overvoltage automatic relief, over-temperature alarm and power failure, leakage protection, safe and reliable operation;

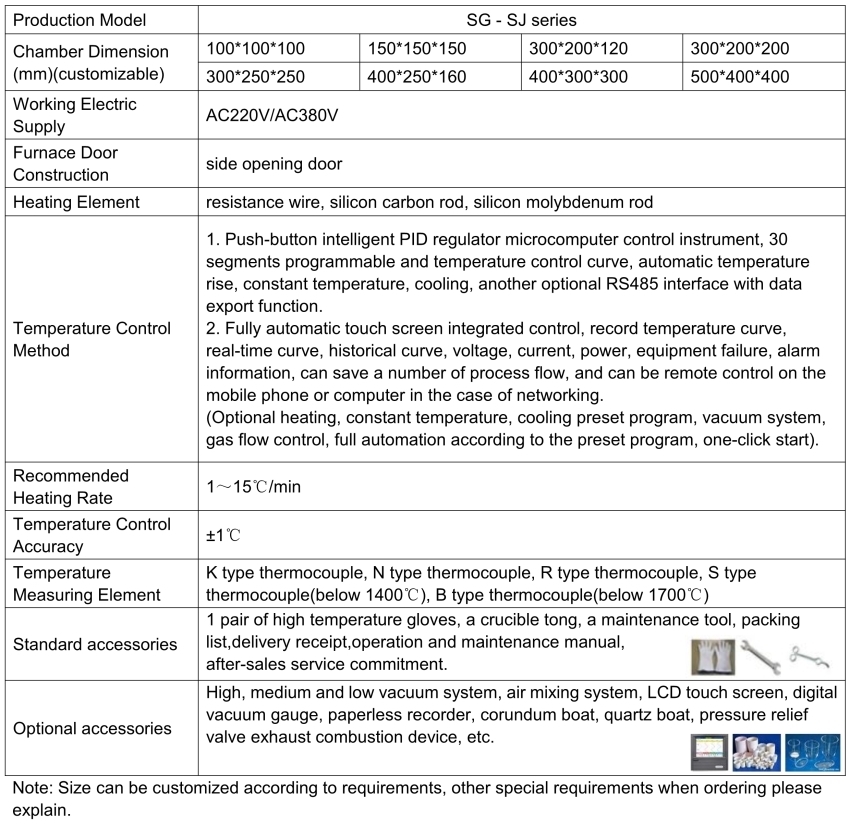

Technical parameters:

Product model
SG-SJ 1700
Furnace size (mm)
100*100*100
150*150*150
300*200*120
300*200*200
300*250*250
350*250*200
400*300*300
500*400*400
Working power supply
380V 50/60HZ
380V 50/60HZ
380V 150~160HZ
Rated power
6kw
6kw
8kw
9kw
12KW
12KW
15kw
23KW
Furnace door structure
Side opening type
Heating element
Silicon molybdenum rod
working temperature
Less than 1650 degrees centigrade
Maximum temperature
1700 C
temperature control
Intelligent PID control, micro-computer control, 30 programmable temperature control curve, without guard (automatic rise, fall, heat preservation)
heating rate
1~15 C /min
control accuracy
+ 1 c
vacuum degree
-0.1MPa
Thermometric element
B-type thermocouple
Standard accessories
Two corundum crucibles, one pair of high temperature gloves, one crucible clamp, one set of maintenance tools, packing list, delivery receipt, operation and maintenance instructions, and after-sales service acknowledgement.
Optional Accessories
Paperless recorder, etc.
Note: Furnace size can be customized according to requirements. Please specify when ordering other special requirements.
Quality Advantage of Experimental Furnace in Shanghai Institute of Optical Precision Machinery, Chinese Academy of Sciences
I. Furnace Shell and Furnace
1. Double-layer high-quality carbon steel plate, surface rust-proof and high-temperature paint treatment;
2. High temperature furnace with alumina polycrystalline fibers is beautiful and energy-saving.
II. Electrical appliances and temperature control
1. All electronic components are Delicious brand.
2. To ensure safe and efficient use, imported copper isolation transformer is adopted.
3. Temperature Control and Detection
Rhodium monoplatinum (S type) is less than 1500 C.
Bi-platinum rhodium (B type) is less than 1800 C.
Senior engineer, master of engineering and doctor of Shanghai Institute of Optics and Precision Machinery, Chinese Academy of Sciences can select the experimental furnace for your company and research institute, and senior designers can work together to design the high temperature furnace.
