Applicant Scope:

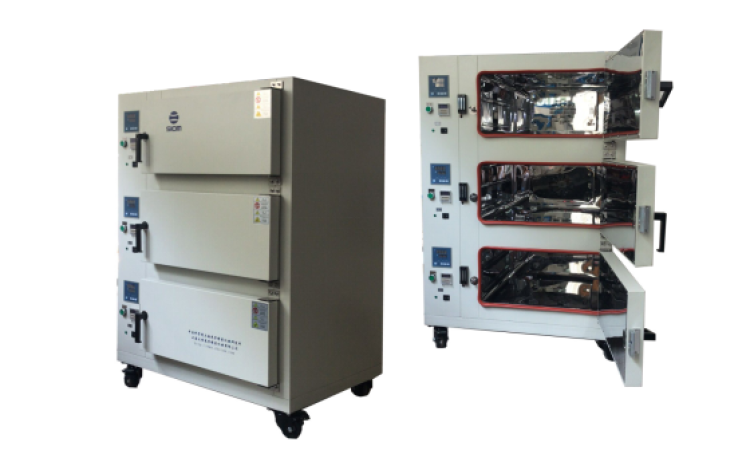

Three chambers experiment chamber is suitable for all kinds of products or materials and electrical, instruments, meters, components, electronics, electrical and automotive, aviation, communications, plastics, machinery, chemical, food, hardware tools under constant temperature environmental conditions for drying and various constant temperature adaptability tests.

Technical Parameters:
　　1.The box adopts high-quality cold-rolled steel plate, the surface electrostatic spray, the coating is hard and firm, and has strong anti-rust ability.
　　2.The studio is made of high-quality stainless steel, right-angle shape, smooth and smooth, easy to clean.
　　3.Single cavity size (mm) : 600 (width) *600 (depth) *200 (height).
　　4.Mesh board: 2 layers of stainless steel mesh board (the first layer is 40mm from the bottom of the oven, the first and the second mesh board is 100mm apart, removable, easy to clean), pulling slot is U-shaped slot to prevent the mesh board from slipping.
　　5. Temperature range:
　　Room temperature +10~200℃;
　　Temperature fluctuation: ≤±0.5℃;
　　Temperature uniformity: ≤±2%;
　　Power supply: AC220V/50Hz;
　　Power: about 9KW;
Materials And Features:
　　Temperature control meter: The product adopts comprehensive electromagnetic compatibility design and humanized menu design, and adopts the adaptive temperature control technology independently developed by the company for temperature control, making the equipment operation silly, solving the problems of PID control technology requiring multiple parameter setting and temperature overshoot, and the temperature control effect is accurate. Dual screen high brightness wide window digital display, the value is clear and intuitive. Microcomputer intelligent control, after setting the temperature, the instrument controls the heating power by itself, and displays the heating state, temperature control is accurate and stable. Over-temperature alarm and automatically cut off the heating power supply.
　　Insulation layer: high performance insulation structure. From the inside to the outside, there is an inner cavity, an inner shell, ultra-fine glass fiber, and air inter-layer, and the inner heat loss is less. The unique mechanism of the outer box and the door reduces the heat transfer of the inner cavity.
　　Internal structure of the box: The heat of the electric heater placed on the back of the box is discharged forward through the side air duct, and after drying, it is inhaled by the high-performance special fan on the back to form a reasonable air duct, which can make the hot air fully convection and make the temperature in the box uniform. Stainless steel liner, durable, right Angle design makes cleaning more convenient.

The external structure of the box:streamlined design, the shell is made of cold-rolled steel plate, the surface electrostatic spray plastic, beautiful and generous;
Sensor: Class A, PT100 platinum resistor
　　Heating method: nickel complex metal electric heater
Safety Protection Device:
　　1.Over-temperature alarm protection;
　　2.Over-current protection;
　　3.Power leakage protection;
　　4.Equipment safety grounding protection;
　　5.Power supply phase protection.
