Product Description:

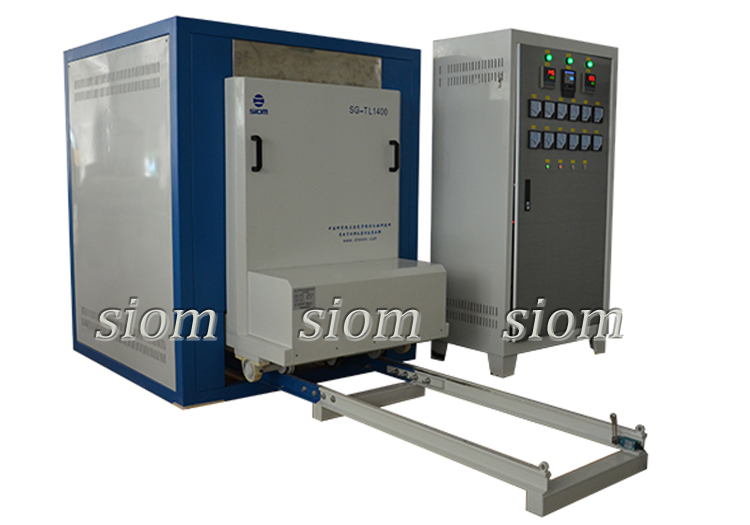

Precision trolley furnace is a new type of electric furnace with high efficiency, energy saving and environmental protection. It has unique design technology, beautiful appearance, advanced and reasonable structure, simple and convenient operation. The shell is made of high-quality cold-rolled steel plate, processed by precise numerical control machine tool, and processed by imported epoxy powder electrostatic spraying process. The furnace is made of composite alumina fiber, with good thermal insulation performance and high temperature resistance. No slag, long service life.
Temperature Control Zone: Two-way Temperature Control, Two-way Recording, Fully Automatic Separated Travel Control Cabinet
Main uses and scope of application:
This equipment is widely used in universities, scientific research institutes, industrial and mining enterprises for powder, military industry, electronics, metallurgy, medicine, ceramics, glass, machinery, new material development, special materials, refractories, building materials, chemical industry, metal sintering and metal heat treatment experiments and production of ideal equipment.
Main functions and characteristics:
1. The furnace has the advantages of uniform temperature field, close to room temperature on the surface of double-layer heat-resisting furnace body, adjustable heating, holding and cooling rate at will. The furnace is all constructed by imported ultra-high temperature composite fiber material through unique numerical control technology. It has strong thermal shock resistance, strong quench and heat resistance, good corrosion resistance, no collapse, no crystallization, no slag falling, no pollution and long service life.
2. The control system adopts the intelligent adjustment technology of micro-computer. It has the functions of PID regulation, automatic control and self-tuning. It has 30-segment programming, and can compile various programs of heating, constant temperature and cooling. It has high precision of temperature control, high energy saving and high stability.
3. The protection device adopts independent protection: (overtemperature, overvoltage, overcurrent, couple breakage, power failure, leakage, short circuit, etc.).
4. Electric roller table can pull out the furnace body and material in and out conveniently, so as to improve work efficiency.
5. Through 485 or USB interface, our software equipment can realize remote control of single or multiple electric furnaces, start electric furnaces, stop electric furnaces, set temperature control programs, store temperature control programs, view historical curves, print historical curves, etc.

Technical parameters:

Product model
SG-TL1400
Furnace size (mm)
300*300*300
500*500*500
600*600*600
800*500*500
800*800*800
1200*800*800
1500*1000*1000
2000*1000*1000
Working power supply
220V 50/60HZ or 380V 50/60HZ
Heating element
High Quality Silicon Carbon Bar
Rated temperature
Less than 1350 degrees centigrade
temperature control
Intelligent PID control, micro-computer control, 30 programmable temperature control curve, without guard (automatic rise, fall, heat preservation)
heating rate
1~15 C /min
control accuracy
+ 1 c
Thermometric element
S-type Thermocouple of Thermoplatinum and Rhodium
Optional Accessories
High, medium and low vacuum systems, paperless recorders, corundum crucibles, quartz crucibles, etc.
Note:
1. Furnace size and temperature can be manufactured according to customer's requirements.
2. Material Platform System: Single Material Platform and Multi Material Platform (Electric, Manual) are optional
3. Electronic Control System: Computer Control, Touch Screen Control and Microcomputer Control are optional
Quality Advantage of Experimental Furnace in Shanghai Institute of Optical Precision Machinery, Chinese Academy of Sciences
I. Furnace Shell and Furnace
1. Double-layer high-quality carbon steel plate, surface rust-proof and high-temperature paint treatment;
2. High temperature furnace with alumina polycrystalline fibers is beautiful and energy-saving.
II. Electrical appliances and temperature control
1. All electronic components are Delicious brand.
2. To ensure safe and efficient use, imported copper isolation transformer is adopted.
3. Temperature Control and Detection
Rhodium monoplatinum (S type) is less than 1500 C.
Bi-platinum rhodium (B type) is less than 1800 C.
Senior engineer, master of engineering and doctor of Shanghai Institute of Optics and Precision Machinery, Chinese Academy of Sciences can select the experimental furnace for your company and research institute, and senior designers can work together to design the high temperature furnace.
