Product Description:

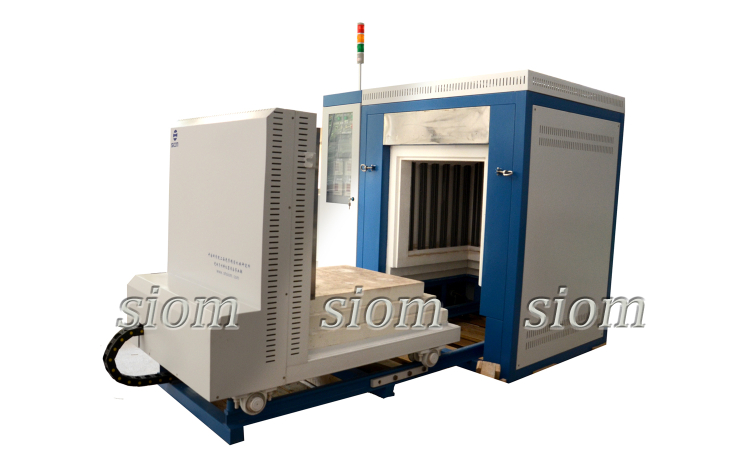

Large bogie stove uses silicon carbon rod as heating element, which has high temperature resistance and long service life. Using high quality S-type thermocouple to measure temperature and fuzzy PID to control temperature automatically, it has high temperature control accuracy (+1 C).
Main uses and scope of application:
This product adopts reliable integrated circuit, good working environment, anti-interference, computer program control, programmable 30-section curve, automatic heating/cooling, temperature control parameters and procedures can be modified in operation, flexible, convenient and easy to operate. Precision of temperature control: +1 (?) C heating rate is fast and the fastest heating rate is less than 15/min. Furnace material is made of composite alumina fiber, which has high temperature, low heat storage and good thermal insulation. Reasonable structure, inner and outer double-layer furnace sleeve, air-cooled heat dissipation, can greatly shorten the working cycle, etc. This product is widely used in metal annealing, refractories, electronics, ceramics, metallurgy, machinery, building materials, special materials, new material development and other fields of testing and production of essential products.
2. The control panel is equipped with an intelligent temperature regulator, which controls the power switch, the main heating operation, the stop button, and the working state indicator lamp to facilitate the control of the equipment. The "S" thermocouple with stable performance and long life is used to improve the accuracy of temperature control.

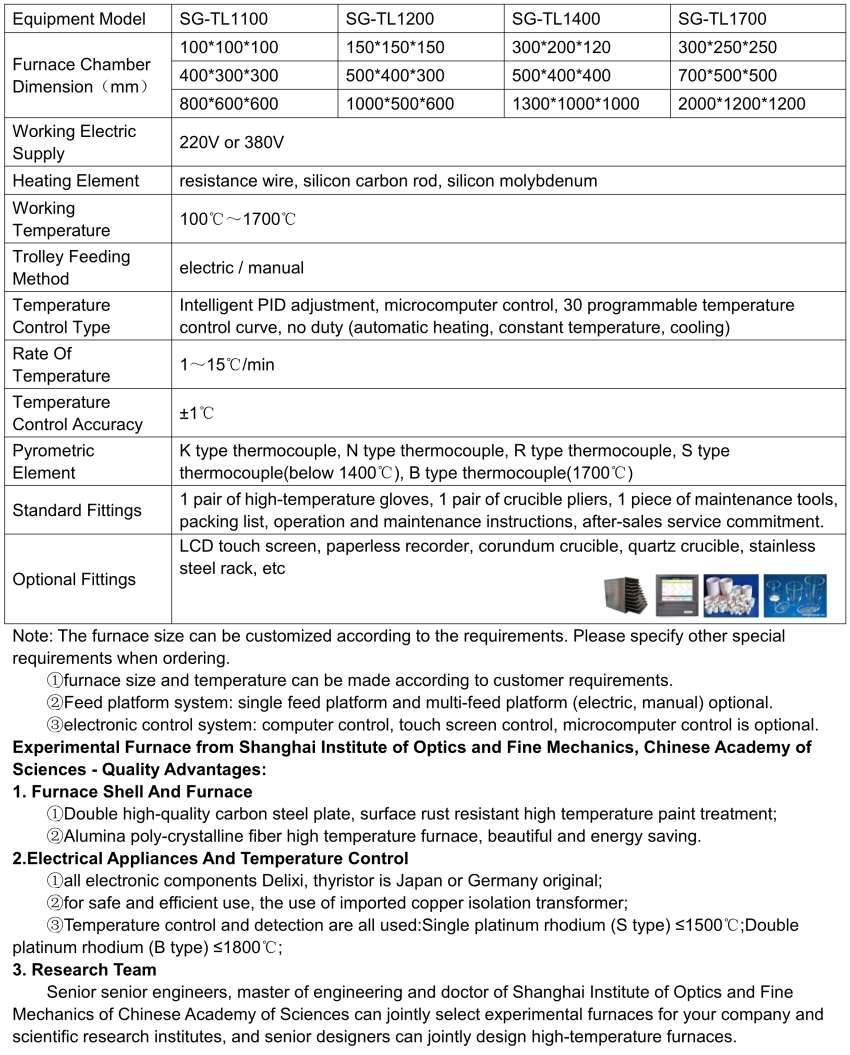

Technical parameters:

Product Model
SG-TL1400
Furnace Size (Deep * Width * High mm)
1500*1200*800
Furnace material
Composite oxidizing furnace fibers
Working power supply
AC380V 50/60HZ
Rated power
About 85KW
Common temperature
Less than 1350 degrees centigrade
Design temperature
1400 C
Recommended heating rate
1~15 C /min
temperature control
Xiamen Yudian LCD touch screen control, can control temperature by 30 procedures, without guard (automatic rise, fall, heat preservation)
control accuracy
+ 1 c
Heating element
Silicon carbide
Thermometric element
S-type thermocouple
Special technical requirements
Note:
1. Furnace size and temperature can be manufactured according to customer's requirements.
2. Material Platform System: Single Material Platform and Multi Material Platform (Electric, Manual) are optional
3. Electronic Control System: Computer Control, Touch Screen Control and Microcomputer Control are optional
Note: Furnace tube size can be customized according to requirements. Please specify when ordering other special requirements.
Quality Advantage of Experimental Furnace in Shanghai Institute of Optical Precision Machinery, Chinese Academy of Sciences
I. Furnace Shell and Furnace
1. Double-layer high-quality carbon steel plate, surface rust-proof and high-temperature paint treatment;
2. High temperature furnace with alumina polycrystalline fibers is beautiful and energy-saving.
II. Electrical appliances and temperature control
1. All electronic components are Delicious brand.
2. To ensure safe and efficient use, imported copper isolation transformer is adopted.
3. Temperature Control and Detection
Rhodium monoplatinum (S type) is less than 1500 C.
Bi-platinum rhodium (B type) is less than 1800 C.
Senior engineer, master of engineering and doctor of Shanghai Institute of Optics and Precision Machinery, Chinese Academy of Sciences can select the experimental furnace for your company and research institute, and senior designers can work together to design the high temperature furnace.
