Production Description:

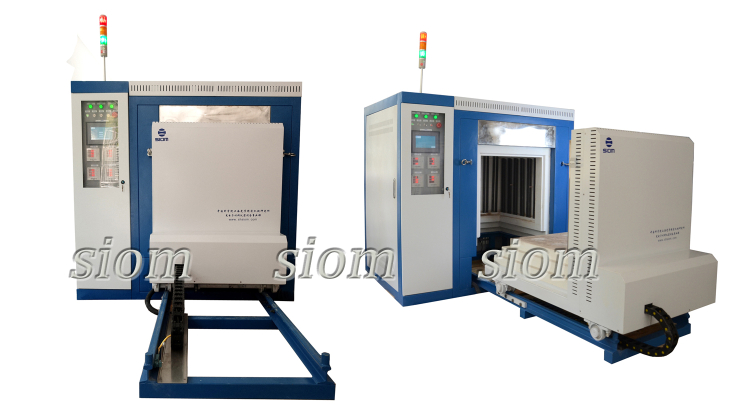

  Touch screen high temperature trolley furnace series is efficient, salving energy, environmental new type electrical furnace,which has the unique designed technology, elegant appearance, advanced reasonable construction,easy to operate, the shell is made of high-quality cold-rolled steel plate, processed by precision CNC machine tool and then processed by imported epoxy powder electrostatic spraying process, high temperature resistance, corrosion resistance, and the color of the equipment will not fade for a long time.

Main Uses And Applicant Scope:

  The equipment is widely used in universities, scientific research institutes, industrial and mining enterprises to do powder, electronics, metallurgy, medicine, ceramics, glass, machinery, new material development, special materials, refractory materials, building materials, chemical industry, metal sintering and metal heat treatment and other experimental and production ideal equipment.

Main Function and Feature:

1.The furnace has the advantages of uniform temperature field, the surface temperature of the double-layer heat-resistant furnace body is close to room temperature, the rise, protection, cooling rate can be adjusted arbitrarily, etc., the furnace is made of imported ultra-high temperature composite fiber material by unique numerical control technology, strong thermal shock resistance, strong cold and heat resistance, good corrosion resistance, no collapse, no crystallization, no slag, no pollution, long service life;

2.The control system adopts microcomputer intelligent regulation technology, with PID regulation, automatic control, self-tuning function, 30 segment program programming, and can prepare a variety of temperature, constant temperature, cooling procedures, high precision temperature control, high energy saving, high stability;
　　3.The protection device adopts independent protection: (over temperature, over pressure, over current, break, power off, leakage, short circuit, etc.);
　　4.The charge table roller table electric pull out of the oven, convenient and take and put materials to improve work efficiency;
　　5.Our software equipment through 485 or USB interface and computer interconnection, can achieve a single or multiple electric furnace remote control, start the electric furnace, stop the electric furnace, set temperature control program, temperature control program storage, view the history curve, print history curve, etc.
　　6.Touch screen temperature control: instead of mechanical button, can avoid contact shaking, mechanical aging, poor contact, improve system reliability. You can also set parameters, display data, and monitor the running status of the entire device. A separate password can be set on the touch screen to avoid faulty operation, automatically identify and detect the running status of the device, and discover anomalies in time.
　　7.Circuit protection: over temperature, over pressure, over current, break, power off, etc., with three-color light;
　　8.Electrical insulation device, protective cover material for organic glass.
　　9.Integrated control: The control cabinet is on the left side of the equipment.

10.Heating method: four side heating (front, back, left, right)
