Product introduction:

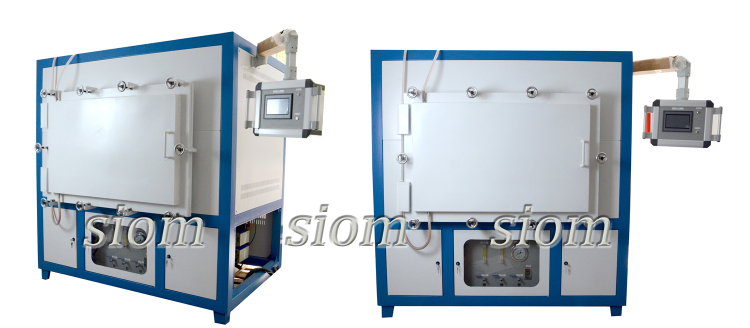

SG-XQL1200 box-type vacuum atmosphere furnace uses high-quality silicon-carbon rod as heating element, adopts intelligent temperature control system, phase-shifting trigger and silicon controlled control; uses alumina polycrystalline fiber material in furnace, which has good heat preservation effect; double shell structure, with air-cooling and water-cooling system, can quickly cool down, and the door is equipped with circulating water cooling to prevent the sealing ring from aging too fast, so as to ensure the reliability of the door and the furnace gallbladder. Seal up.
Main uses and scope of application:
It can be used in vacuum or atmospheric heat treatment of electronic components, new materials and powder materials. Also used in metallurgy, machinery, light industry, commodity inspection, institutions of higher learning and scientific research departments, industrial and mining enterprises electronic ceramic products pre-firing, sintering, brazing and other processes.
Main functions and characteristics:
1. High-quality silicon-carbon rods are used for heating elements, and alumina polycrystalline fibers are used for furnace, which have good thermal insulation, durability, high tensile strength and greatly prolonged service life.
2. Vacuum can be pumped and various protective atmosphere can be introduced (except inflammable, explosive and highly corrosive gases).
3. Overvoltage automatic relief, over-temperature alarm and power failure, leakage protection, safe and reliable operation;
4. Our software equipment is connected with computer through 485 or USB interface, which can realize the functions of remote control, real-time tracking, history recording and report output of single or multiple electric furnaces, and can install paperless recording device to realize data storage and output.
5. The vacuum system, inflation system and temperature control system can be programmed by touch screen operation. The operation is simple, convenient and accurate.
Technical parameters:

Product model
SG-XQL1200
Furnace size (mm)
1000 * 1000 * 500 (customizable)
Working power supply
220V 50/60HZ
380V 50/60HZ
Furnace door structure
Side opening type
Heating element
Silicon carbide
Rated temperature
Less than 1150 degrees centigrade
temperature control
Intelligent PID control, micro-computer control, 30 programmable temperature control curve, without guard (automatic rise, fall, heat preservation)
heating rate
1~15 C /min
control accuracy
+ 1 c
Thermometric element
S-type Thermocouple of Thermoplatinum and Rhodium
Standard accessories
One pair of high temperature gloves, one crucible pliers, one set of maintenance tools, packing list, delivery receipt, operation and maintenance instructions, after-sales service commitment.
Optional Accessories
High, medium and low vacuum systems, paperless recorders, corundum crucibles, quartz crucibles, etc.
Note: Furnace tube size can be customized according to requirements. Please specify when ordering other special requirements.
Experimental Furnace of Shanghai Institute of Optical Precision Machinery, Chinese Academy of Sciences - Quality Advantage:
I. Furnace Shell and Furnace
1. Double-layer high-quality carbon steel plate, surface rust-proof and high-temperature paint treatment;
2. High temperature furnace with alumina polycrystalline fibers is beautiful and energy-saving.
II. Electrical appliances and temperature control
1. All the electronic components of Delicious brand and SCR are originally made in Japan or Germany.
2. To ensure safe and efficient use, imported copper isolation transformer is adopted.
3. Temperature Control and Detection
Rhodium monoplatinum (S type) is less than 1500 C.
Bi-platinum rhodium (B type) is less than 1800 C.
Senior engineer, master of engineering and doctor of Shanghai Institute of Optics and Precision Machinery, Chinese Academy of Sciences can select the experimental furnace for your company and research institute, and senior designers can work together to design the high temperature furnace.
