Product Introduction:

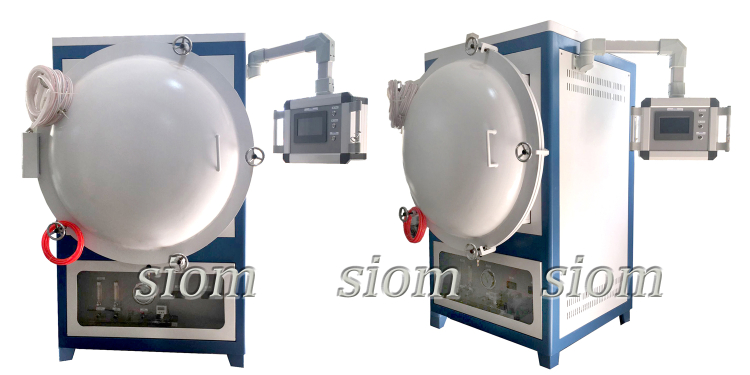

  The vacuum touch furnace with overhanging wall uses silicone molybdenum rod as heating element, which is internal heating method.It uses the temperature control system, and the Silicon Controlled Rectifier (SCR) controlling. The chamber uses the alumina poly-crystal fiber material,which has the excellent heat insulation effect. The equipment uses the double shell structure. At the same time, the instrument has air cooling and water cooling system, which can quickly cool down. The furnace door is equipped with water cooling to prevent the sealing ring from aging too quickly and ensure the reliable sealing of the furnace door and furnace gall.

Main Uses And Applicant Scope:

  The equipment can be used in the heat treatment process of electronic components, new materials and powder materials under vacuum or atmosphere conditions. It is also used in metallurgy, machinery, light industry, commodity inspection, colleges and universities and scientific research departments, industrial and mining enterprises of electronic ceramic products pre-burning, sintering, brazing and other processes.

Main Functions And Features:

　　1.Using the silicon molybdenum rod as heating element, and the furnace chamber uses alumina poly-crystal fiber material, which has the excellent thermal insulation performance, durable, high tensile strength, greatly improve the service span;

　　2.The facilities can be vacuumed, and can enter a variety of protective atmospheres (except flammable and explosive, toxic and harmful, and highly corrosive gases);

　　3.Over-pressure automatic pressure relief, high temperature alarm and power off, leakage protection, reliable operation;

　　4.The software equipment through 485 or USB interface and computer interconnection, can achieve a single or multiple electric furnace remote control, real-time tracking, history, output reports and other functions; Paperless recording device can be installed to realize data storage and output;

  5.Optional through the touch screen operation of the vacuum system, inflation system, temperature control system for program control, simple operation, accurate.
