Production introduction:

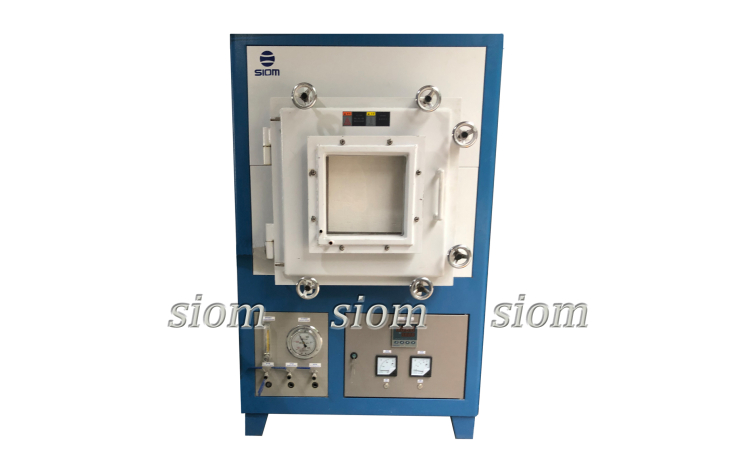

  The visual viewing window atmosphere furnace uses the silicon carbon rod as heating element.The instrument has a good temperature control system, which is realized by thyristor control.The furnace tank uses the alumina poly-crystal fiber material, which has the excellent insulation effect. The furnace uses the double shell structure with the air cooling system and water cooling system, which can rapidly cool down.The furnace door is equipped with water cooling to prevent the sealing ring from aging too quickly and ensure the reliable sealing of the furnace door and furnace gall.

Main Uses And Applicant Scope:

  The equipment can be used in the heat treatment process of electronic components, new materials and powder materials under vacuum or atmosphere conditions. It is also used in metallurgy, machinery, light industry, commodity inspection, colleges and universities and scientific research departments, industrial and mining enterprises of electronic ceramic products pre-burning, sintering, brazing and other processes.

Main Functions And Features:

      1.The silicon carbon rod is uses as heating element.The furnace tank uses the alumina fiber material, thermal insulation properties, durable,high tensile strength, which greatly improves service life;

      2.The facilities can be vacuumed, and can enter a variety of protective atmosphere (except flammable and explosive, toxic and harm,highly corrosive gases )

      3.The facility has the automatic over-pressure relief, high temperature alarm and power off, leakage protection, reliable operation;

      4.The software equipment through 485 or USB interface and computer interconnection, can achieve a single or multiple electric furnace remote control, real-time tracking, history, output reports and other functions; Paperless recording device can be installed to realize data storage and output;

      5.Optional through the touch screen operation of the vacuum system, inflation system, temperature control system for program control, simple operation, accurate.
