Product Description:

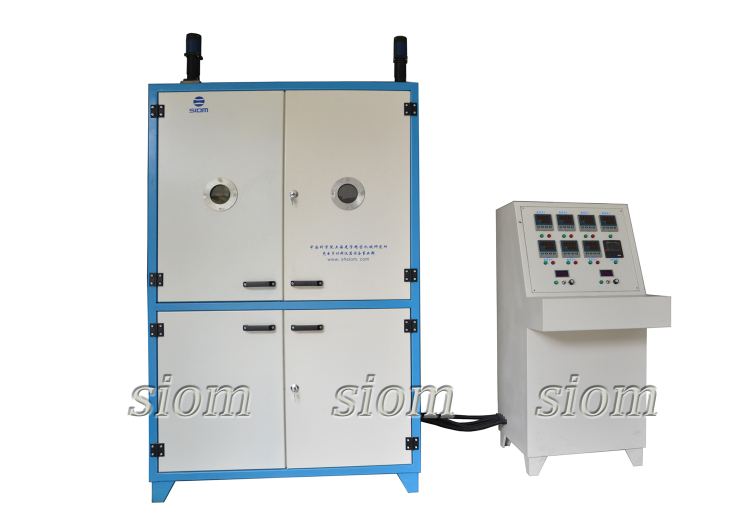

Zone melting furnaces are ideal equipment for material purification, crystal growth and preparation of ultra-high purity raw materials and melting metering by using the principle of directional solidification. Optional resistance wire, silicon carbon rod, silicon molybdenum rod or medium frequency induction heating. Applications: semiconductor materials, metal materials, ceramic materials, optical materials.

Main Functions And Features:
      1.Zone furnace structure can be divided into horizontal zone melting or vertical zone melting, single tube or multi-tube local heating;
      2.High-precision moving rail and high-quality stepper motor make the transmission system more accurate and stable;

3.The temperature field frame uses high-quality high-temperature resistant materials to slowly move the heating device, and the melting zone moves along the length of the material and gradually takes away from the initial melting point;

4.Independent control cabinet, LCD touch screen display, to achieve data storage, output, can be copied to the computer through the U disk, curve real-time display so that the program setting faster, equipment operating state more intuitive, set data and operation are graphic interface, easy to operate; For data storage and output, multiple heating curves can be preset, and data can be copied to the computer for long-term storage through the USB interface.
